Data Models in InterSystems IRIS

InterSystems IRIS stores data in persistent, multidimensional arrays called global variables, which is generally shortened to globals. Globals are hierarchical and sparse, and do not require a predefined schema.

The same data stored in globals can be accessed through multiple models, including relational tables, objects, key-value structures, and documents. They are called globals because they are persistent and can be accessed across processes, throughout the system.

Globals can be visualized as a tree diagram, where each node of the tree has a key, or subscript, and may have value.

Globals are sparse: storage is allocated only for nodes that contain data or have defined descendants. Subscripts do not need to be contiguous, and undefined nodes consume no storage.

For example, in the diagram above, the Subscript2 node does not have a value, and only exists because the node at Subscript 3 is defined as ^GlobalName("Subscript1", "Subscript2", "Subscript3") = Value. An empty node, like that at Subscript2 does not cost any resources.

InterSystems IRIS is optimized for efficient access to global data, including high-volume transactional workloads.

Global subscripts and values can contain several types of data. For example, sequential integer subscripts can represent a numbered array, while values can contain strings, numbers, or encoded lists.

In ObjectScript, global references begin with a caret (^), which differentiates a variable from a standard variable.

To access a specific global node, provide its subscript or sequence of subscripts in parentheses.

// Set the root node
set ^Demo = 1
// Node 1
set ^Demo(1) = "Hello"
// Node 1,2
set ^Demo(1, 2) = 45
// Node 1,2,'foo'
set ^Demo(1, 2, "foo") = $LISTBUILD("A", "B", "C", 1)
// Node 4
set ^Demo(4) = "World!"

We can use the same method to access the values:

write ^Demo
// Output: 1

write ^Demo(1, 2, "foo")
// Output: $lb("A","B","C",1)    Note $lb() is short for $ListBuild and refers to a list object

To display the referenced global and its descendants, use the ZWRITE command:

zwrite ^Demo
/* output:
^Demo=1
^Demo(1)="Hello"
^Demo(1,2)=45
^Demo(1,2,"foo")=$lb("A","B","C",1)
^Demo(4)="World!"
*/

As the Class Programming Quickstart shows in detail, we can define persistent classes whose instances are stored in the database. In these cases, InterSystems IRIS stores the persistent data in globals.

Class Sample.Pets Extends %Persistent
{
    // Name of Pet
    Property Name As %String;
    // Type of Animal
    Property Type As %String;
    // Age of Pet
    Property Age As %Integer;
}

We can use this to create a new Pet object as follows:

set newpet = ##class(Sample.Pets).%New()
set newpet.Name = "Whiskers"
set newpet.Type = "Cat"
set newpet.Age = 3
do newpet.%Save()

When the object is saved, the persistent property values will be stored in the database as globals. This global will, by default, share the name of the class with a 'D' character appended. For the above Sample.Pets example, the data should be found in the global ^Sample.PetsD.

zwrite ^Sample.PetsD
/*output:
^Sample.PetsD=1
^Sample.PetsD(1)=$lb("","Whiskers","Cat",3)
*/

The class storage definition determines the structure of the generated global. In this example, the record with ID 1 is stored beneath ^Sample.PetsD(1). Applications should use the class and SQL interfaces rather than relying on the generated storage layout.

The list begins with an empty element, this value is reserved for the name of a subclass.

To access a specific value, we can use .%OpenId():

set pet = ##class(Sample.Pets).%OpenId(1)
zwrite pet
/*output:
+----------------- general information ---------------
|      oref value: 2
|      class name: Sample.Pets
|           %%OID: $lb("1","sample.Pets")
| reference count: 2
+----------------- attribute values ------------------
|       %Concurrency = 1  <Set>
|                Age = 3
|               Name = "Whiskers"
|               Type = "Cat"
+-----------------------------------------------------
*/

Persistent classes can project data stored in globals as relational tables. These can be queried, created or modified using SQL.

To see the data we created above, we can use:

Select ID, Name, Type, Age
FROM Sample.Pets

which would output the following table:

You can also insert rows using SQL. Run each INSERT statement separately in interfaces that accept only one statement at a time.

INSERT INTO Sample.Pets (Name, Type, Age) VALUES ('Fido', 'Dog', 5)

INSERT INTO Sample.Pets (Name, Type, Age) VALUES ('Bugs', 'Rabbit', 95)

As we are accessing the same persistent class, these values appear in the same underlying ^Sample.PetsD global. We can see these values with:

zwrite ^Sample.PetsD
/* output:
^Sample.PetsD=3
^Sample.PetsD(1)=$lb("","Whiskers","Cat",3)
^Sample.PetsD(2)=$lb("","Fido","Dog",5)
^Sample.PetsD(3)=$lb("","Bugs","Rabbit",95)
*/

We can therefore visualize the following table:

as the global shown here:

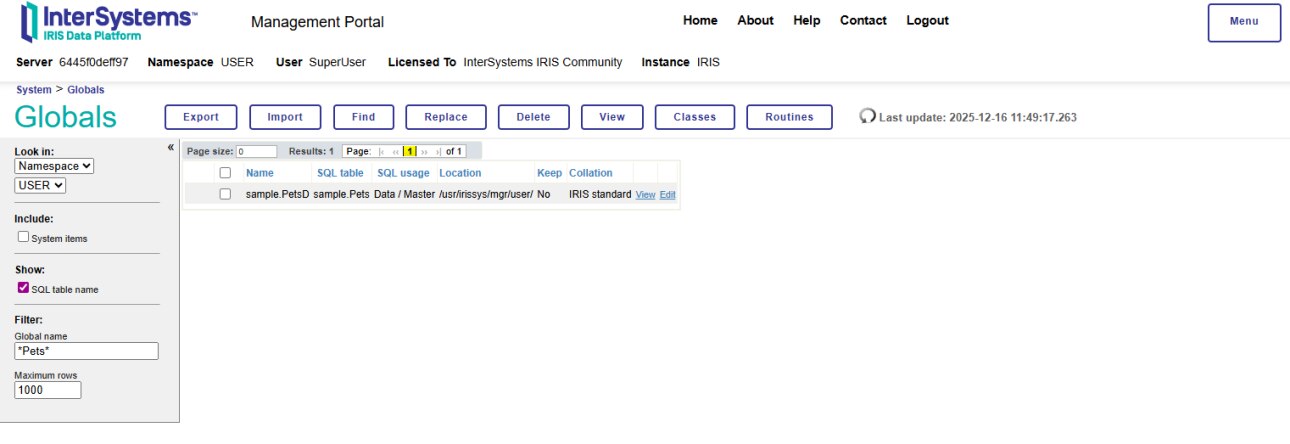

We can see globals using the Globals page of the Management Portal. This page can be found from the homepage in the System Explorer tab. The exact URL will vary depending on your server, web-server port and namespace, but for a default local installation, the URL may resemble the following: http://localhost:52773/csp/sys/exp/%25CSP.UI.Portal.GlobalList.zen?$NAMESPACE=USER. We can filter the globals by name, using * as a wildcard:

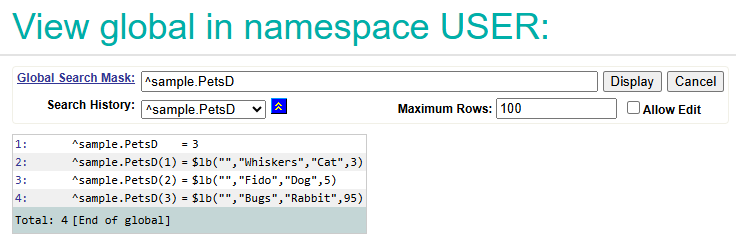

Clicking on View will display the data stored in the global:

For a detailed explanation of globals, see: Video: What Are Globals? | Youtube

Go to Documentation page: Introduction to Globals

Launch Interactive Tutorial: Data Models of InterSystems IRIS
In this hands-on, interactive tutorial, you’ll get a practical introduction to InterSystems IRIS data modeling concepts — all directly in your browser, with no local setup required.

Article: Data models in InterSystems IRIS

Article: InterSystems IRIS Data Models Explained: Hierarchical, Key-Value, Object, Document, Relational, and Columnar
